Lifting magnets

Smart solution for lifting heavy objects in a simple and safe way.

With a lifting capacity of up to 2000 kg and three-folded security, the design makes it both simple and safe. Our lifting magnet is perfect for lifting everything from steel plates to heavy machine parts. It gets impressive power from Neodymium magnets (N40), contributing to a safe and long-lasting function.

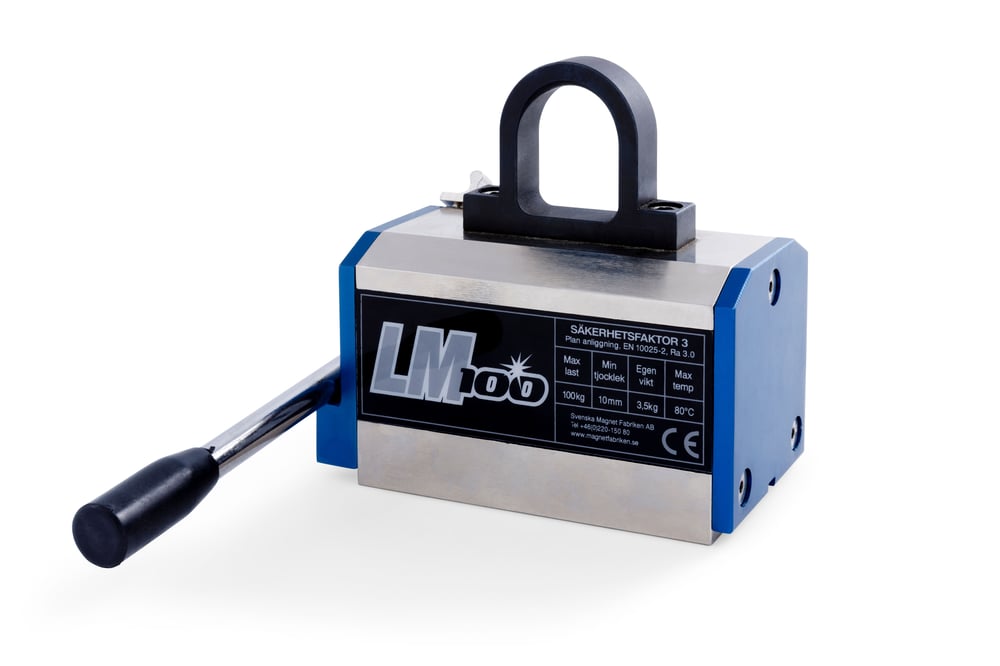

LM-100 LM-100LM-100
Lifting-magnets-graph-EN

The LM series is equipped with ball bearings, which makes activation smooth and easy, while accidental deactivation is prevented with a safe locking mechanism.

Lifting magnets are perfect for lifting heavy objects in a variety of industries, including:

  • The manufacturing industry
  • The construction industry
  • The scrap industry
  • The shipbuilding industry
  • Aviation industry
  • The automotive industry

Safe

The LM series is CE-marked and meets the requirements of the Machinery Directive 2006/42/EC, AFS 2008:3 and SS-EN 13155+A2:2009.

High quality

Our lifting magnets are manufactured to the highest quality to ensure long-lasting and reliable performance.

Effective

The lifting magnet is easy to use and can effectively lift heavy objects in a safe and simple way. You save time and reduce the risk of injury.

lyftmagneter-2
Model

 Max. payload*

 Min thickness

 Max work temp. Length (mm) Width (mm) Height (mm) Lifting eye (mm) Weight
Unit kg mm °C L L1 B H1 H2 F G kg
LM100 100 10 80 135 110 63 70 53 38 32 3.5
LM350 350 20 80 203 165 87 92 68 45 38 10
LM700 700 30 80 266 226 112 109 86 58 45 21
LM1000 1000 40 80 330 290 148 125 95 60 52 40
LM2000 2000 60 80 470 420 178 145 118 70 65 83

* Flat surface, EN 10025-2.
